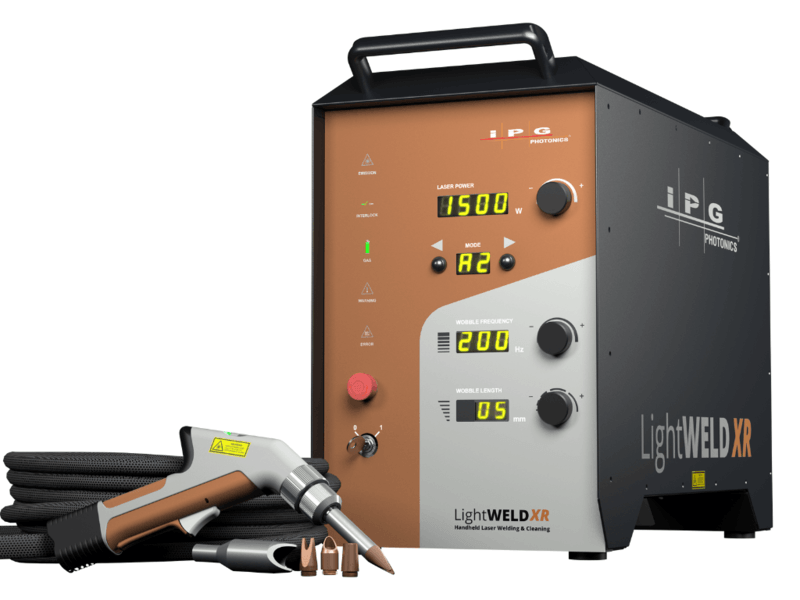

The LightWELD is a Handheld Laser Welding & Cleaning System dramatically improves your welding process with its easy-to-use features and high-quality results.
Unlike traditional welding methods, LightWELD is infinitely easier to operate - providing you with minimal distortion or deformation across a wide range of materials.
Whether it’s welding, post-cleaning, or pre-cleaning, the LightWELD range is a productive solution for all operators.
| LightWELD XR Extended Range Welding & Cleaning | LightWELD XC Welding & Cleaning | LightWELD 1500 Welding | |
|---|---|---|---|
| Welding Capability: Steels | Stainless Steel, Mild Steel, Galvanised Steel 6.35 mm (0.250”) | Stainless Steel, Mild Steel, Galvanised Steel 4 mm (0.160”) | Stainless Steel, Mild Steel, Galvanised Steel 4 mm (0.160”) |
| Welding Capability: Aluminium 3 & 5 Series | Aluminium (3XXX, 5XXX, series) 6.35 mm (0.250”) | Aluminium (3XXX, 5XXX series) 4 mm (0.160”) | Aluminium (3XXX, 5XXX series) |
| Welding Capability: Aluminium 6 Series | 3.0 mm (0.120”) | — | — |
| Welding Capability: Titanium & Nickel Alloy | Titanium and Nickel Alloys 5 mm (0.200”) | — | — |
| Welding Capability-Copper | Copper 2 mm (0.080”) | — | — |
| Wobble Welding | Up to 5 mm width | Up to 5 mm width | Up to 5 mm width |
| Cleaning Scan Width | Pre & Post-weld up to 15 mm | Pre & Post-weld up to 15 mm | — |
| High Frequency Peak Power for Cleaning | 2500 W | 2500 W | — |
| Wire Welding Capability | Yes | Yes | Yes |
LightWELD is suited for operators of all skill levels. Its simple controls and custom preset helps new operators use the system easily, while advanced operators can expertly switch presets for many material thicknesses.
The LighWELD’s low heat input plus extensive capabilities with materials and thicknesses help all welders increase their productivity, well-quality, and repeatability.
